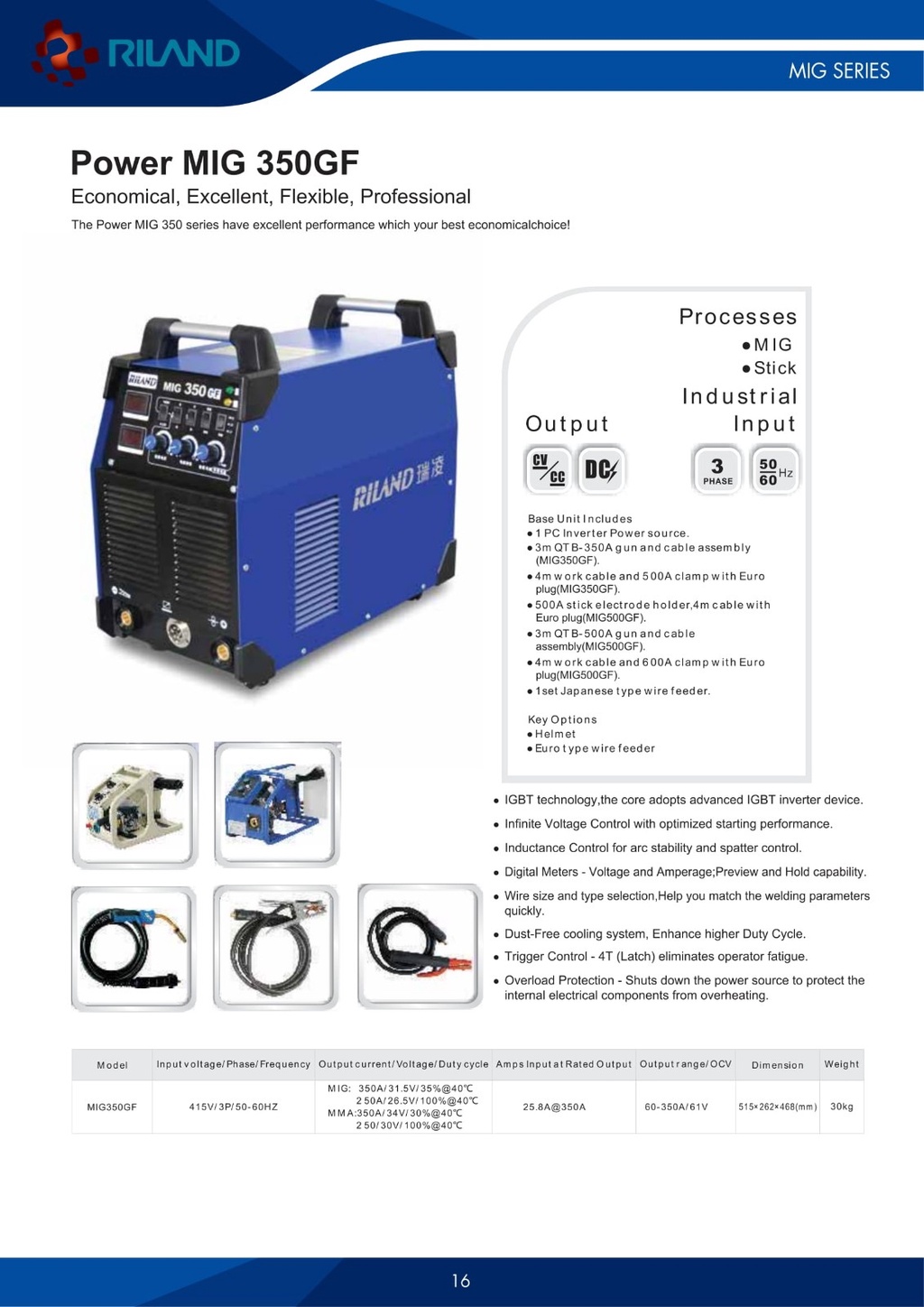

Description

Input Voltage: 415V
Phase: 3P
Frequency : 50-60 Hz
Output Current/ Voltage/ Duty cycle :
MIG: 350 A/ 31.5 V/ 35%@ 40°C ; 250 A/ 26.5 V/ 100% @ 40°C
MMA: 350 A/ 34 V/ 30%@ 40°C ; 250 A/ 30 V/ 100%@ 40°C
Amps Input at Rated Output: 25.8A@ 350 A
Output Range: 60-350 A
OCV: 61 V
Dimension: 515 x 262 x 468 (mm)

.IGBT technology.the core adopts advanced IGBT inveter device
Infinite Voltage Control with optimized starting performance.
Inductance Control for arc stability and spatter control
Digital Meters-Voltage and Amperage: Preview and Hold capability.
Wire size and type selection Help you match the welding parameters
quickly
Dust-Free cooling system, Enhance higher Duty Cycle
.Trigger Control-4T (Latch) eliminates operator fatigue.
Overload Protection-Shuts down the power source to protect the
internal electrical components from overheating
