Description

Applications
• Water supply and irrigation
• Water feeding and pure water treatment system
• Washing and cleaning system

Features
• IE2 motor
• Closed coupled construction
• Insulation class: F
XZS • Protection class: IP55

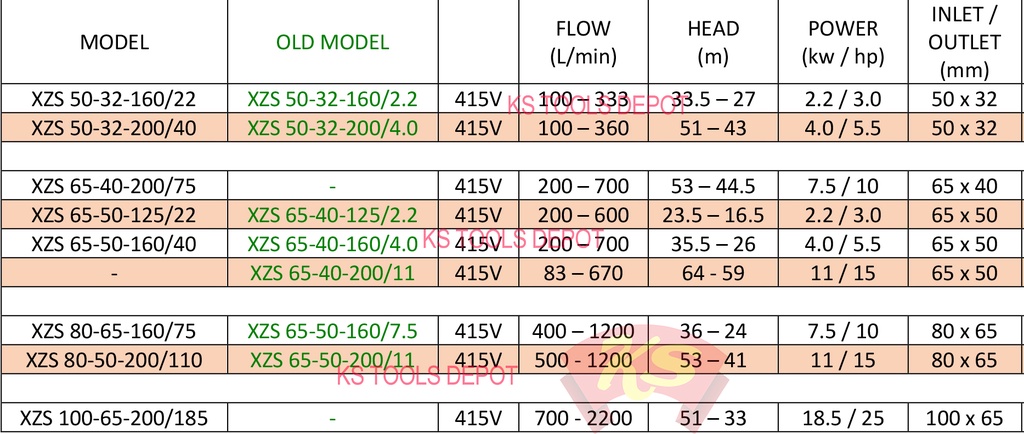

Model: XZS 50-32-160/22
Flow (L/min): 100 – 333
Head (m): 33.5 – 27
Voltage: 415V
Power (kw/HP): 2.2 / 3.0
Inlet/Outlet: 50 x 32

Model: XZS 50-32-200/40
Flow (L/min): 100 – 360
Head (m): 51 – 43
Voltage: 415V
Power (kw/HP): 4.0 / 5.5
Inlet/Outlet: 50 x 32

Model: XZS 65-40-200/75
Flow (L/min): 200 – 700
Head (m): 53 – 44.5
Voltage: 415V
Power (kw/HP): 7.5 / 10
Inlet/Outlet: 65 x 40

Model: XZS 65-50-125/22
Flow (L/min): 200 – 600
Head (m): 23.5 – 16.5
Voltage: 415V
Power (kw/HP): 2.2 / 3.0
Inlet/Outlet: 65 x 50

Model: XZS 65-50-160/40
Flow (L/min): 200 – 700
Head (m): 35.5 – 26
Voltage: 415V
Power (kw/HP): 4.0 / 5.5
Inlet/Outlet: 65 x 50

Model: XZS 65-50-160/55
Flow (L/min): 400 – 1200
Head (m): 29.5 – 20
Voltage: 415V
Power (kw/HP): 5.5 / 7.5
Inlet/Outlet: 65 x 50

Model: XZS 65-50-160/75
Flow (L/min): 400 – 1200
Head (m): 36 – 24
Voltage: 415V
Power (kw/HP): 7.5 / 10
Inlet/Outlet: 65 x 50

Model: XZS 80-65-160/75
Flow (L/min): 400 – 1200
Head (m): 36 – 24
Voltage: 415V
Power (kw/HP): 7.5 / 10
Inlet/Outlet: 80 x 65

Model: XZS 80-50-200/110
Flow (L/min): 500 – 1200
Head (m): 53 – 41
Voltage: 415V
Power (kw/HP): 11 / 15
Inlet/Outlet: 80 x 65

Model: XZS 100-65-200/185
Flow (L/min): 700 – 2200
Head (m): 51 – 33
Voltage: 415V
Power (kw/HP): 18.5 / 25
Inlet/Outlet: 100 x 65
