Description

Applications
• Transfer of clean water or slightly viscous liquid like juice, beverage that contain no particles
• Supporting equipment for food processing machine and water chiller
Features
• Stainless steel AISI 304 pump body, pump support, impeller and shaft
• Max liquid temperature: +60°C
• Mechanical seal: Ceramic, Graphite, EPDM rubber
• Dry running not allowed
• Built in thermal protector
• Copper winding motor
• Insulation class: F
• Protection class: IPX4

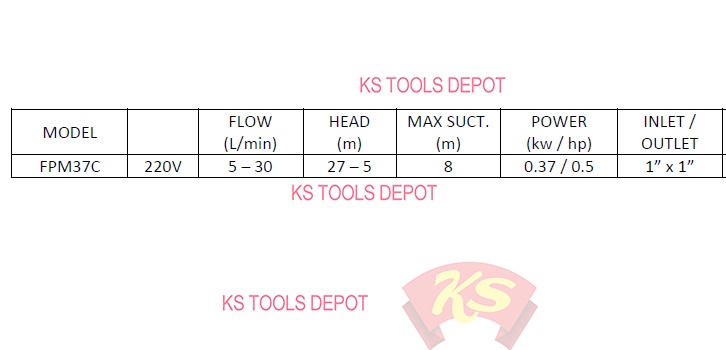

Voltage ; 220V
Flow : 5-30L/min
Head : 27-5m
Max. Suct. : 8m
Power : 0.37kW / 0.5Hp
Inlet : 1”
Outlet : 1”
